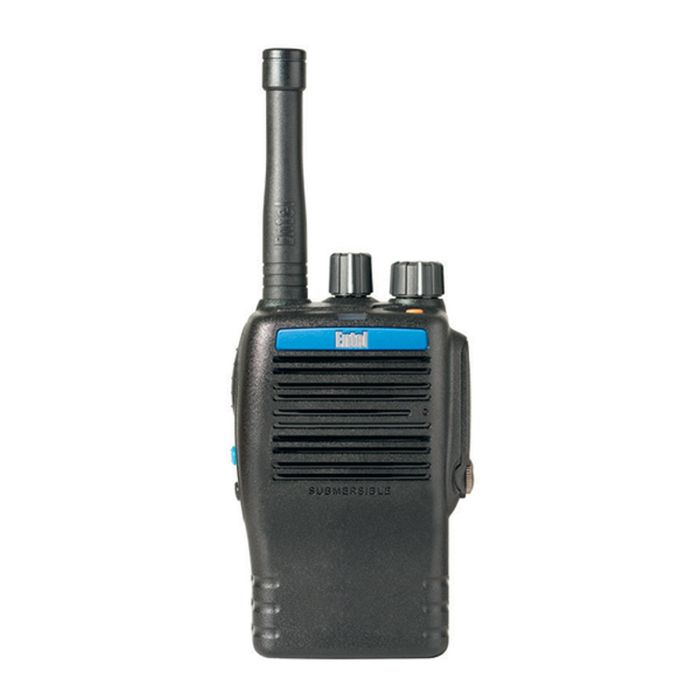

ENTEL DX-IS SERIES
Built to meet the needs of tough marine environments, the DX500 Series is certified to the UL913 intrinsically safe standard and offers outstanding performance. This commercial-grade portable delivers unmatched audio volume and clarity. The intuitive controls, designed for gloved hands, complement the high-contrast OLED display, which is easy to read in low-light conditions.
The compact and ultra-durable DX500 provides a far more natural sounding, 3 watts of digital audio, clearer and louder than radios twice their size. For further peace of mind, the DX500 Series has a market-leading IP68 submersible rating of 2 metres for 4 hours to cope with the harsh conditions of life at sea. We have produced a selection of certified and approved audio accessories for the DX500 Series, including remote speaker microphones, bone conductive skull mics and ear defender headsets. Please see our accessories section for a complete listing.
Intrinsically Safe Certified to UL913 by SGS:
ANSI/UL913 5th Ed
Class I, II, III, Division 1, Groups C-G, T3
Class I, Division 2, Groups A-D
FEATURES
Connected
DX-IS radios support both analogue and digital technologies. Supporting both technologies ensures backwards compatibility with existing analogue radio systems and a simple migration path to the many benefits of digital communications.
Effecient
The commercial grade DX-IS Series offers both analogue and digital modes of operation, high visibility OLED display, high torque ergonomic controls designed for gloved-hand use, and industry-leading IP68 2m 4 hours submersible rating, to provide excellent reliability and usability even in the most extreme conditions. Whether you need a basic entry level radio or advanced digital features our DX-IS Series models deliver smart solutions, helping you to increase productivity and keep your business connected..
Safe
The DX-IS Series delivers a class leading IP68 2 metres for 4 hours submersible rating, the highest IP rating of any manufacturer. This ensures protection against corrosion and other physical hazards encountered, no matter the environment. Approved and certified to UL913, for users who do not need to comply with the European ATEX directive.
GENERAL
| Frequency Range | 403 - 527 MHz (UHF) ; 136 - 174 MHz (VHF) |
| Channel Capacity | 99 (UHF) ; 16 (VHF) |
| Channel Spacing | 12.5kHz , 25kHz |
| Operating Voltage | 7.6V DC |
| DImensions(H-W-D) with Standard Battery | 97mm x 59.5mm x 37mm (with CNB450E-IS) |
| Weight with Standard Battery | 269g (UHF-Display) ; 259g (VHF-Non display) |
| Standard Battery Capacity | 2200mAh |
| Battery Life | Analog: 15 Hours Digital: 21 Hours |
| LCD Display | OLED displays (UHF) ; Non-display (VHF) |
RF SPECIFICATION
| RF Power Output |
UHF : 1W/4W VHF : 1W/5W |
| Sensitivity | Analog - 0.2 μV Digital - 0.2 μV |
ENVIRONMENTAL
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Dust & Water Protection |
IP68 (2m 4h Submersible) |
| Packaging Test | MIL-STD810 C/D/E/F/G |
| HazLoc Certification | Intrinsically Safe Certified to UL913 by SGS - ANSI/UL913 5th Ed - Class I,II,III, Division 1, Groups C-G, T3 - Class I, Division 2, Groups A-D |
