Airbus TMR880i
Mobile connection with confidence
TMR880i mobile radio is a good choice for your vehicle:
- Easy to use and to learn
- Easiest menus and selections
- Great set of functions
- Optimised for mission critical communication and applications in vehicle use
- Excellent configurability for different needs
- Versatile installation options.
The TMR880i TETRA mobile radio meets the requirements for secure and efficient voice and data communications.

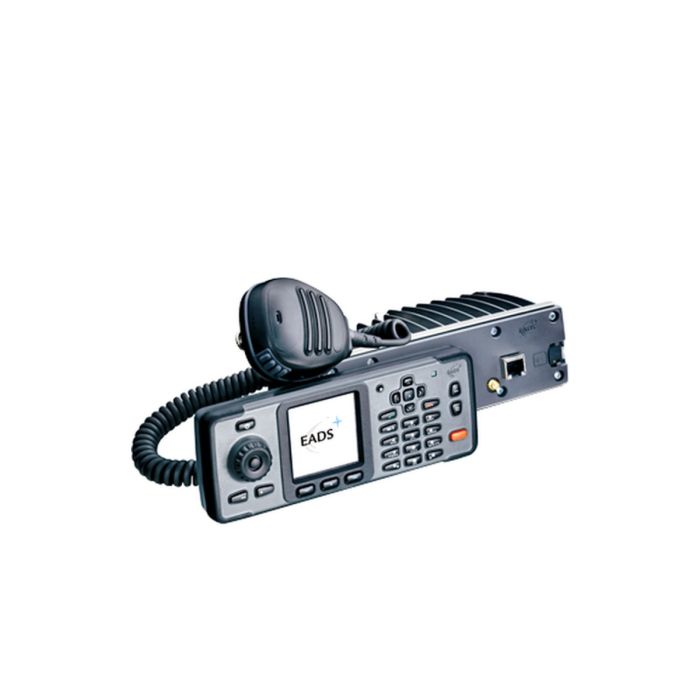

The TMR880i consists of a radio transceiver and a separate control unit for easy installation and use in a wide variety of vehicles. The radio unit can be integrated into - and controlled by – an external device or application, making it ideal for data applications such as telemetry, positioning and remote control.
The CUR-3 control unit has a professional, balanced design and a large colour display for optimised visibility, even in changing light conditions. Voice feedback guides the user in talk group selection and the Fast Menu functions enabling reliable and intuitive operation. Configurable menus and keys and a “Go to” quick menu enable customising of the radio to meet an organisation’s precise needs.
TMR880i supports smart card based end-to-end encryption. Communications can be encrypted all the way from the sending unit to the receiving unit. This encryption solution provides the highest level of security, allowing implementation of organisation‘s specific encryption algorithms. The TMR880i has an integrated slot for the smart card. An external smart card reader is available for further flexibility.
The JavaTM platform allows organisations easily introduce its own applications with a customised user interface.
With its integrated GPS receiver, the TMR880i can provide the user - as well as the command and control centre - with accurate position information.
The position of a radio can be requested over the air or the radio can send its position at certain intervals, or at defined triggers. Users can view their coordinates, altitude, speed, and direction on the display. For enhanced user safety, the radio can be set to send details of its current or latest position to a predefined address. The user friendly GPS-based Waypoint guidance application can show the direction and distance to a selected destination.
GENERAL
| Frequency Range | 380-430 MHz |
| Power Class | RF power control, 4 steps of 5 dB EN300392-2 compliant, power class 4 Receiver class A |
| Weight & Dimensions | Radio Unit Weight : 1004 g , Dimensions : 60 mm x 182 mm x 125 mm Control unit CUR-3 Weight : 240 g , Dimensions : 72 mm x 190 mm x 36 mm |
| Display | High-resolution, active TFT color display 130 x 130 pixels, 65,536 colors Display texts in more than 25 languages Support for Latin, Arabic, Greek, Chinese, Korean, Cyrillic and Bulgarian characters and keymats Night vision mode |
| Keypad / controls | Alphanumeric keypad 4 navigation keys, 3 selection keys Power-on key, volume keys, red function key, duty key, fast menu key, group selector, back key, display brightness control |
| GPS receiver | Inbuilt A-GPS with internal memory Power save mode GPS activity indicator Sensitivity -162 dBm Simultaneous satellites up to 12 Cold start accuracy (open sky)* - 2,5 meters CEP Cold start TTFF, time to first fix (open sky)* - < 30 seconds * measured at -130dBm Automatic position saving Position information sending on request or on triggers, e.g. time, distance, status message Position information sending during red key calls and public emergency calls Waypoints, waypoint guidance Saving own waypoint with one key press for Waypoint guidance Network-based terminal assisted positioning Support for ETSI location information proto-col for TETRA (LIP) |
| Call types | Phone calls in TETRA & public networks Express and group calls in TETRA network TETRA emergency calls Public emergency calls (e.g. to 112) |
| Wireless data | IP packet data WAP 2.0 over TETRA IP packet data xHTML browser AT-command interface for applications Java™ MIDP 2.0 platform |
| Direct mode features | Up to 180 DMO groups 60 DMO channels DMO repeater type 1A and 1B communications support, and acting itself as type 1A repeater (option) TMO-DMO via Gateway communications support, but not as a Gateway itself Scanning DMO individual call Red key call to DMO group Red key call to TMO within TETRA network coverage Public emergency call within TETRA network coverage DMO SCK encryption, encryption classes 2A, 2B and 2C DMO status messages DMO SDS messages Network monitoring while in DMO |
| Security | Authentication and Mutual authentication Air Interface Encryption (AIE) security classes: - Class 1: Clear - Class 2: SCK - Class 3: DCK/CCK - Class 3G: GCK (requires TETRA SIM card) Phone and Security code Temporary disable/enable (Stun) Permanent disable (Kill) Transmission barring (Tx inhibit) Alert for out of network coverage Support for smart card based end-to-end encryption (option) |
| Interfaces | Separate control unit CUR-3 16 configurable I/O pins Multiple audio devices Helmet audio interface Serial data External power on / off External PTT External emergency PTT 12 V supply voltage Ignition sense Internal slot for smart card External smart card reader Active GPS antenna TETRA antenna Service connector for programming USB flashing |
