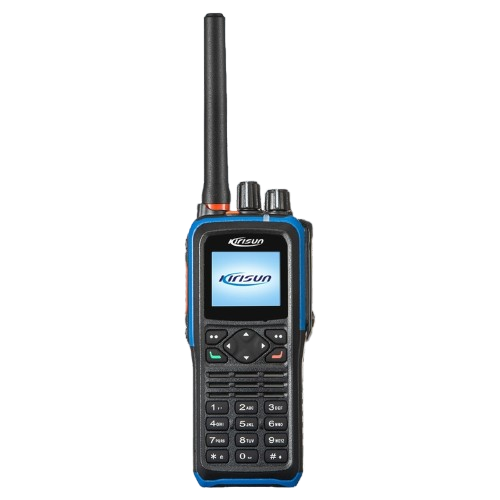

Kirisun Intrinsically Safe DMR portable radio DP810 is specially designed and engineered to operate safely in hazardous environments. It provides additional safety and reliability, keeping your workers safe in the toughest environments with flammable gases and combustible dust and other hazards.
FEATURES
Ergonomic Product Design
DP810 1.8-inch LCD colour display enables excellent even when light conditions are bright. The large keypad design allows to operate device easily. The prominent appearance of "Kirisun Explosion-Proof Bright Blue" enhances device identification for crew under hazardous environment, ensures working and manufacture safety.
Environmentally Safe
The DP810 is ATEX/IECEX certified. It can work safely in most hazardous environments even with the presence of hydrogen and dust particles.
Enhanced Safety
Kirisun DP810 ensures your safety with built-in Man-down, GPS and Lone Worker functions, as well as a dedicated emergency button, which could be easily triggered in case of any accident, to send an alarm and initiate a voice call to a pre-programmed work fellow or group immediately.
High-Capacity and Safety Design Battery
2100mAh battery supplied in the standard package, operates up to 16-19 hours in 5-5-90 mode. The battery circuitry is truly encapsulated to prevent damaged by high temperature and humidity.
High Quality Audio
Ai-based noise cancellation technology decreases background noise and howling by 25dB, ensures listening and speaking clearly in a noisy environment to satisfy well communication in heavy equipment, engines, trucks, and factories.
Multi-Mode Operation
It supports analogue conventional, digital conventional, MPT trunking, and DMR Tier III trucking, facilitating smooth analogue-to-digital transition. Multiple advanced analogue signalling, including MDC1200, DTMF, 2-Tone and 5-Tone, provides higher expansion capacity in current communication systems.
Frequency Range | 400-480MHz (UHF) |
Channel Capacity | 1024 |
Channel Spacing | 12.5kHz , 20kHz , 25kHz |
Operating Voltage | 7.5V |
DImensions(H-W-D) with Standard Battery | 157.5mm x 56mm x 41.4mm |
Weight with Standard Battery | 500g |
Standard Battery Capacity | 2100mAh |
Battery Life | Analog: 15 Hours Digital: 19 Hours |
LCD Display | 1.8 inch, 5 rows |
RF Power Output |
< 2 W |
Sensitivity | Analog 0.22 μV Digital 0.22 μV |
Operating Temperature | -20 °C to 50 °C |
Storage Temperature | -40 °C to 85 °C |
Dust & Water Protection |
IP68 |
Electrostatic Discharge | IEC610000-4-2 (Level 4) |
Packaging Test | MIL-STD 810C/D/E/F/G/H |
Anti-explosion levels(ATEX) | II 2G Ex ib IIC T4 (Gas) II 2D Ex ib IIIC T120 ℃ IP65 (Dust) |
Anti-explosion levels(IECEx) | II ib IIC T4 (Gas) II ib IIIC T120 ℃ IP65 (Dust) |
American Military Standard | MIL-STD-810 C/D/E/F/G |
