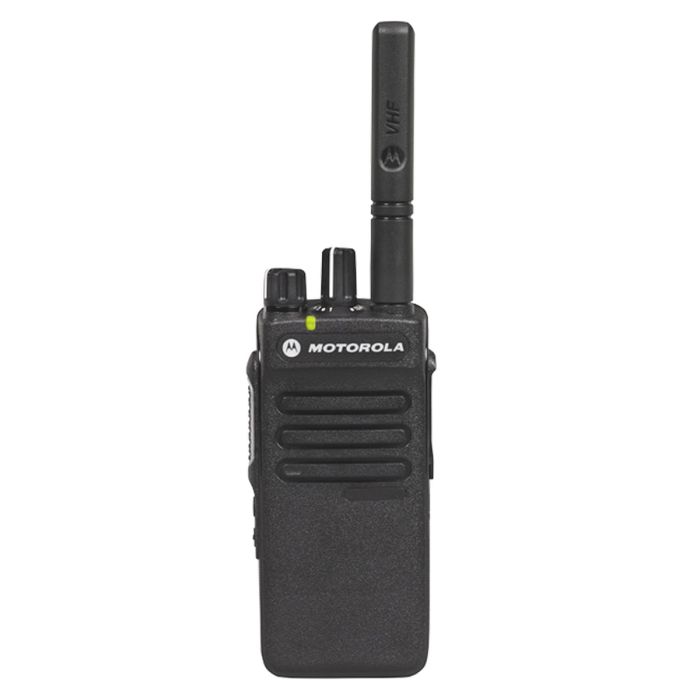

Mototrbo XiR P6600i

With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more efficient. The XiR P6600i Series is designed for the everyday worker who needs effective communications. With systems support and loud, clear audio, these next-generation radios deliver cost-effective connectivity to your organisation.

Here's what's new in these next-generation radios:

-> Enhanced audio quality

-> Improved expandability

-> Better battery life (up to 28 hours)

-> Better range (up to 8%)

-> Better waterproofing (IP67)

-> HazLoc models available

Price Inquiry

Be the first to review this product

Overview

FEATURES

Connected

The MOTOTRBO XiR P6600i Series is a family of DMR-standard digital radios that delivers operations-critical voice communications. With support for basic trunking as well as legacy analogue technology, you can keep your organisation connected as it grows.

Efficient

With new noise cancellation technology and enhanced clarity, the XiR P6600i Series delivers excellent audio quality to make your workplace communications clearly intelligible. The latest energy technology provides the battery option which delivers up to 28 hours of battery life for 3-shift working, and the optional IMPRES Over-the-Air Battery Management tool helps you maximise battery lifetime. An improved receiver boosts range, allowing you to reach further than ever.

Safe

The XiR P6600i Series is designed to improve safety in your organisation, with the rapid response capability of instant push-to-talk communications. Even if a worker is unresponsive, you can remotely activate the radio to check that your worker is safe. Radios can be remotely disabled if they are misplaced. New HazLoc models are available for use in areas where flammable or explosive materials are present.

Specification

GENERAL

Frequency Range	403 - 527 MHz (UHF) ; 136 - 174 MHz (VHF)
Channel Capacity	32
Channel Spacing	12.5kHz , 25kHz
Operating Voltage	7.5V DC
DImensions(H-W-D) with Standard Battery	122mm x 56mm x 42mm
Weight with Standard Battery	285g
Standard Battery Capacity	2450mAh
Battery Life (typical cycle)	Analog: 21.5 hours ; 22 hours Digital: 16.5 hourrs ; 17 hours
LCD Display	Non Display

RF SPECIFICATION

RF Power Output	UHF : 1W/4W VHF : 1W/5W
Sensitivity	Analog: 0.16μV Digital: 0.14μV

ENVIRONMENTAL

Operating Temperature	-30 °C to +60 °C
Storage Temperature	-40 °C to +85 °C
Dust & Water Protection	IEC 60529 - IP67
Electrostatic Discharge	IEC 61000-4-2 Level 4
Packaging Test	MIL-STD 810 D and E
HazLoc Certification	Xir P6600i Series radios are UL-Approved to TIA-4950 for use in hazardous locations, Division 1, Class I, II, III, Groups C, D, E, F, G; Division 2, Class 1, Class 1, Groups A, B, C, D when properly equipped with UL-Approved battery.
