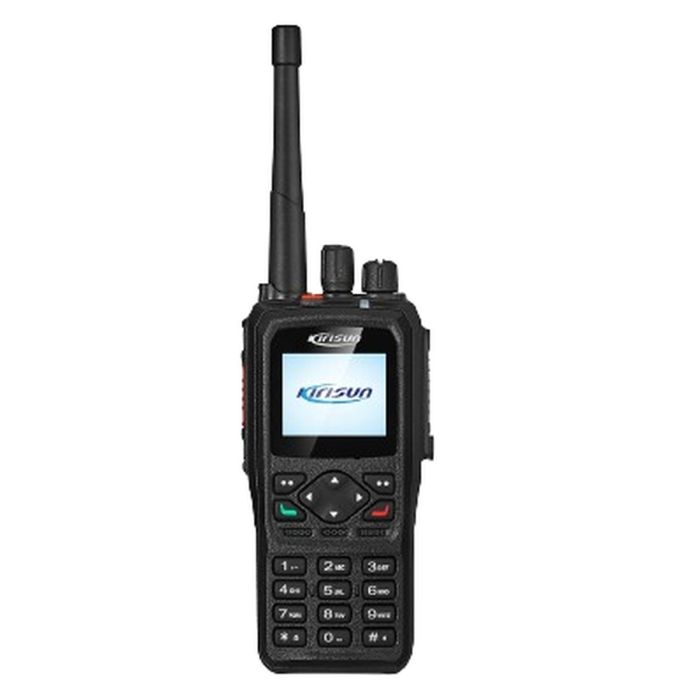

DP990, a DMR portable with ergonomic design and rich digital functions, helps to improve management efficiency and responsiveness in emergency.
FEATURES
1.8” Graphic Dot-matrix True Colour Display
The large-size colour display allows good visibility even under extremely strong light.
Reliable and Durable
DP990, MIL-STD-810 C/D/E/F/G and IP68 rated, delivers you reliable communication even in the toughest conditions.
Multi-Mode Operation
It supports analogue conventional, digital conventional, MPT trunking, and DMR Tier III trunking, facilitating smooth analogue-to-digital transition. Multiple advanced analogue signalling, including MDC1200, DTMF, 2-Tone and 5-Tone, provides higher expansion capacity of the current communication systems.
Secure Communication
DP990 provides basic and enhanced encryption capability, including ARC4, DES, and 256 bits AES encryption algorithm. It secures voice calls and data transfer among the team members.
Rich Services
It supports rich voice and data service, including all kinds of voice calls, text and status message, GPS location, VOX, emergency call, priority call and all call, besides Tx interrupt roaming, dual-slot pseudo trunking, kill, stun, revive, remote monitoring, radio check, VOX, vibration, real time clock, and scan.
Bluetooth
Built-in Bluetooth for connecting with a variety of accessories like PTT button, and earphones.
Single Frequency Repeater
It works as a single-frequency repeater in digital mode, greatly saving frequency resources and extending communication range in DMO.
GENERAL
Frequency Range | 400-470 MHz |
Channel Capacity | 1024 |
Channel Spacing | 12.5kHz/20kHz/25kHz |
Operating Voltage | 7.5V DC |
Dimensions(H-W-D) | 132mm X 56.5mm X 38mm |
Zone Capacity | 248 |
Battery (2000/2500 mAh Li-ion) |
Analogue: 13 hrs @ 2000mAh Digital: 15 hrs @ 2000mAh |
Weight (with standard battery) | 371g |
LCD Display | 1.8inch, 5 rows |
RF Power Output |
1W/4W |
Sensitivity | Analog: 0.22uV (12dB SINAD) Digital: 0.22uV (5% BER) |
Operating Temperature | -30 °C to +60 °C |
Storage Temperature | -40°C~ +85°C |
Dust & Water Protection |
IP68 |
