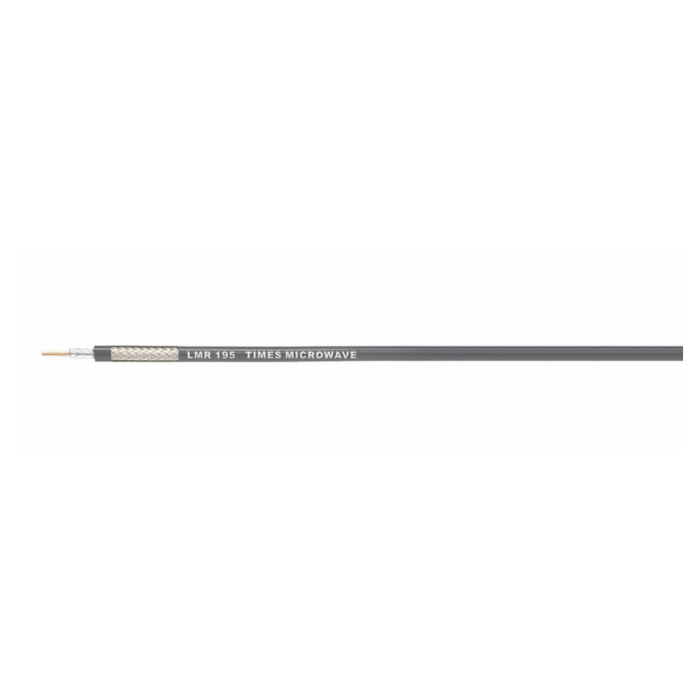

LMR-195-Standard Cable, Black Pe Jacket

LMR^®-195 50 Ohms coax cable with UV Resistant jacket. Great drop-in replacement for RG-58 and RG-142 cables. Designed for antenna feeder jumper assemblies runs requiring a high-performance, flexible, low loss RF cable.

Price Inquiry

Be the first to review this product

Specification

PART DESCRIPTION

Part Number	LMR-195
Application	Outdoor
Jacket	PE
Colour	Black

CONSTRUCTION SPECIFICATIONS

Description	Material	in	(mm)
Inner Conductor	Solid BCCAI	0.037	(0.94)
Dielectric	Foam PE	0.110	(2.79)
Outer Conductor	Aluminum Tape	0.116	(2.95)
Overall Braid	Tinned Copper	0.139	(3.53)

MECHANICAL SPECIFICATIONS

Performance Property	Units	US	(metric)
Bend Radius : Installation	in . (mm)	0.5	(12.7)
Bend Radius : Repeated	in. (mm)	2.0	(50.8)
Bending Moment	ft-lb (N-m)	0.2	(0.27)
Weight	lb/ft (kg/m)	0.021	(0.03)
Tensile Strength	lb (kg)	40	(18.2)
Flat Plate Crush	lb/in . (kg/mm)	15	(0.27)
