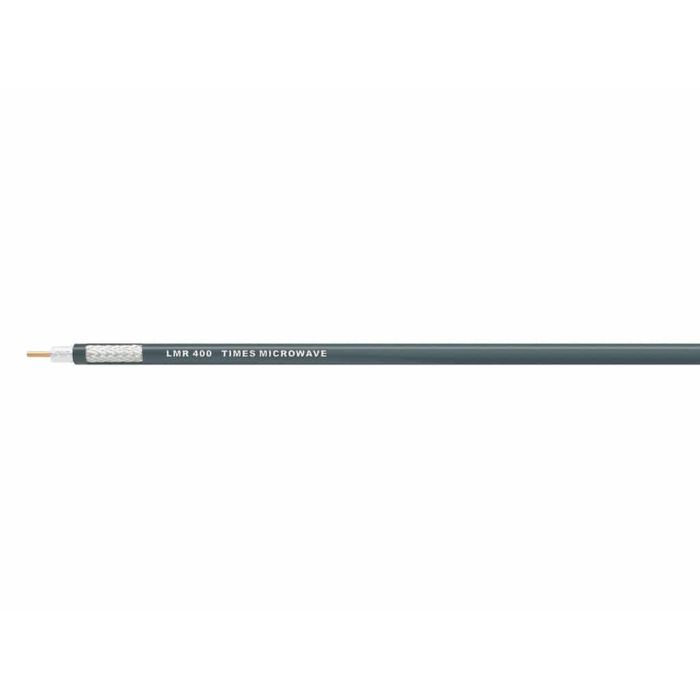

LMR-400-FR Coaxial Cable W/Non-Halogen FR Jacket (P/N : 54030)

LMR-400 FR cable is a non-halogen (non-toxic), low smoke, fire retardant cable designed for in-building runs that can be routed anywhere except air handling plenums. LMR-FR is UL/NEC & CSA rated‘CMR’ and ‘FT4’ respectively, meets FAA FAR25 requirements and is MSHA-P for mining applications.

Price Inquiry

Be the first to review this product

Specification

PART DESCRIPTION

Part Number	LMR-400-FR
Application	Outdoor
Jacket	FR-PE
Colour	Black

CONSTRUCTION SPECIFICATIONS

Description	Material	in	(mm)
Inner Conductor	-	-	-
Dielectric	Foam Polyethylene (FPE)	0.285	(7.24)
Outer Conductor	Aluminum, Copper Coated	0.291	(7.39)
Overall Braid	-	-	-

MECHANICAL SPECIFICATIONS

Performance Property	Units	US	(metric)
Bend Radius : Installation	in . (mm)	-	-
Bend Radius : Repeated	in. (mm)	-	-
Bending Moment	ft-lb (N-m)	0.5	(0.68)
Weight	lb/ft (kg/m)	0.068	(0.10)
Tensile Strength	lb (kg)	160	(72.6)
Flat Plate Crush	lb/in . (kg/mm)	40	(0.71)
