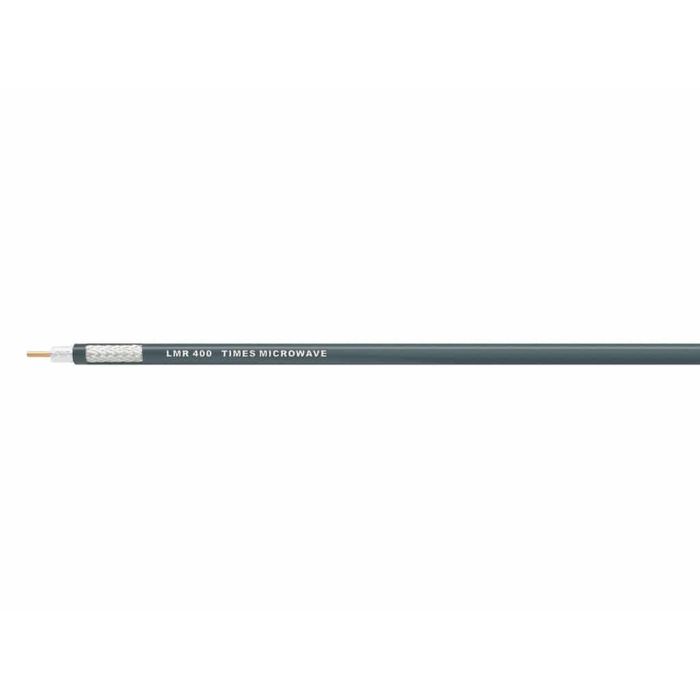

LMR-400-Standard Cable, Black Pe Jacket (P/N : 54001)

LMR-400 standard is a UV Resistant Polyethylene jacketed cable designed for 20-year service outdoor use. The bending and handling characteristics are significantly better than air-dielectric and corrugated hard-line cables.

Price Inquiry

Be the first to review this product

Specification

PART DESCRIPTION

Part Number	LMR-400
Application	Outdddor
Jacket	PE
Colour	Black

CONSTRUCTION SPECIFICATIONS

Description	Material	in	(mm)
Inner Conductor	Solid BCCAI	0.108	(2.74)
Dielectric	Foam PE	0.285	(7.24)
Outer Conductor	Aluminum Tape	0.291	(7.39)
Overall Braid	Tinned Copper	0.320	(8.13)

MECHANICAL SPECIFICATIONS

Performance Property	Units	US	(metric)
Bend Radius : Installation	in . (mm)	1.00	(25.4)
Bend Radius : Repeated	in. (mm)	4.0	(101.6)
Bending Moment	ft-lb (N-m)	0.5	(0.68)
Weight	lb/ft (kg/m)	0.068	(0.10)
Tensile Strength	lb (kg)	160	(72.6)
Flat Plate Crush	lb/in . (kg/mm)	40	(0.71)
