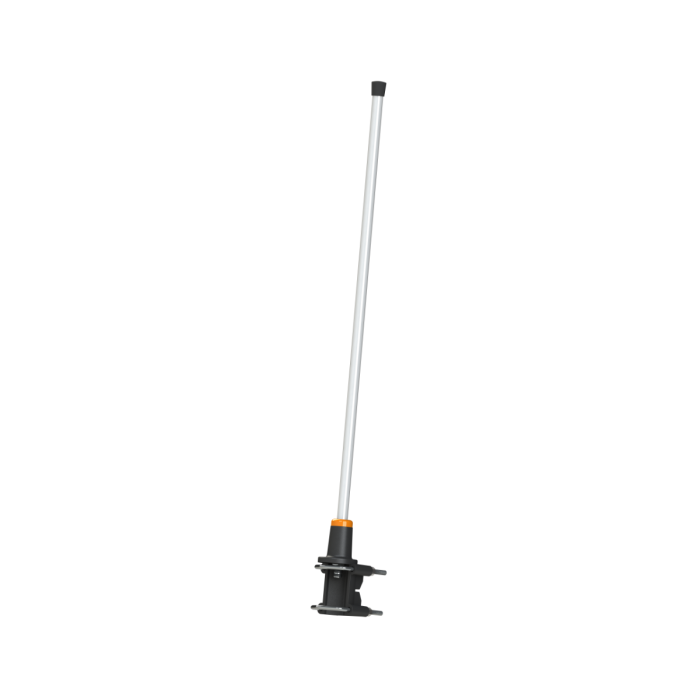

Scan Antenna Base001/Base301
Base001/Base301
VHF 150 MHz base station antennas with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
FEATURES
This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
- High power antenna design
- Customer specified centre frequency in X version
- No ground plane needed
PRODUCT SPECIFICATION
| Model | Frequency (MHz) | Gain dBd (dBi) | Length (mm) | Item No. |
| Base001-A | 118 - 137 | 0 (2 , 15) | 1500 | 22010-004A |
| Base001-D | 154 - 174 | 0 (2 , 15) | 1400 | 22010-004D |
| Base301-A | 118 - 124 | 3 (5 , 15) | 3500 | 22310-004A |
| Base301-G | 156 - 163 | 3 (5 , 15) | 2700 | 22310-004G |
ELECTRICAL SPECIFICATION
| Antenna Type | Half wave dipole |
| Impedance | 50 ohm |
| Max. Input Power | 150 Watt |
MECHANICAL SPECIFICATION
| Color | White, black, orange |
| Mount Type | Fixed tube mounting bracket |
| Mounting Place | On vertical or horizontal mast tube (Ø 30 – 60 mm) |
| Operating Temperature | -55C to +70C |
| Survival Wind Speed | 55 m/s (200km/h) |
| Connector | N-female |
| Ingress Protection | IP66 |
