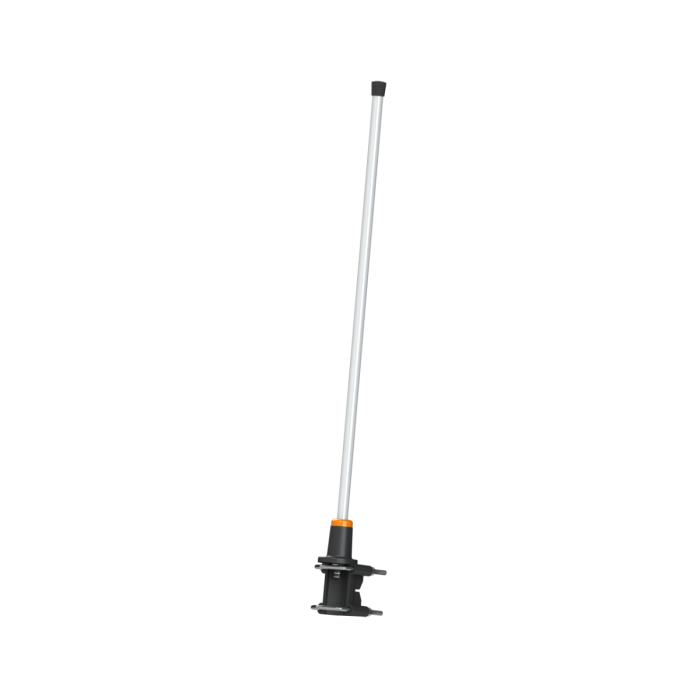

Scan Antenna Base004/Base304/Base504
Base004/Base304/Base504
UHF 450 MHz base station antennas with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
FEATURES
This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.
- High power antenna design
- No ground plane needed
PRODUCT SPECIFICATION
| Model | Frequency (MHz) | Gain dBd (dBi) | Length (mm) | Item No. |
| Base004-C | 430 - 450 | 0 (2 , 15) | 900 | 23004-004C |
| Base304-F | 440 - 470 | 3 (5 , 15) | 1400 | 23304-004F |
| Base504-B | 400 - 430 | 5 (7 , 15) | 2250 | 23504-004B |
| Base504-D | 440 - 470 | 5 (7 , 15) | 2250 | 23504-004D |
ELECTRICAL SPECIFICATION
| Antenna Type | Half wave dipole |
| Impedance | 50 ohm |
| Max. Input Power | 250-300 Watt (depending on model) |
MECHANICAL SPECIFICATION
| Color | White, black, orange |
| Mount Type | Fixed tube mounting bracket |
| Mounting Place | On vertical or horizontal mast tube (Ø 30 – 60 mm) |
| Operating Temperature | -55C to +70C |
| Survival Wind Speed | 55m/s (200km/h) |
| Connector | N-female |
| Ingress Protection | IP66 |
