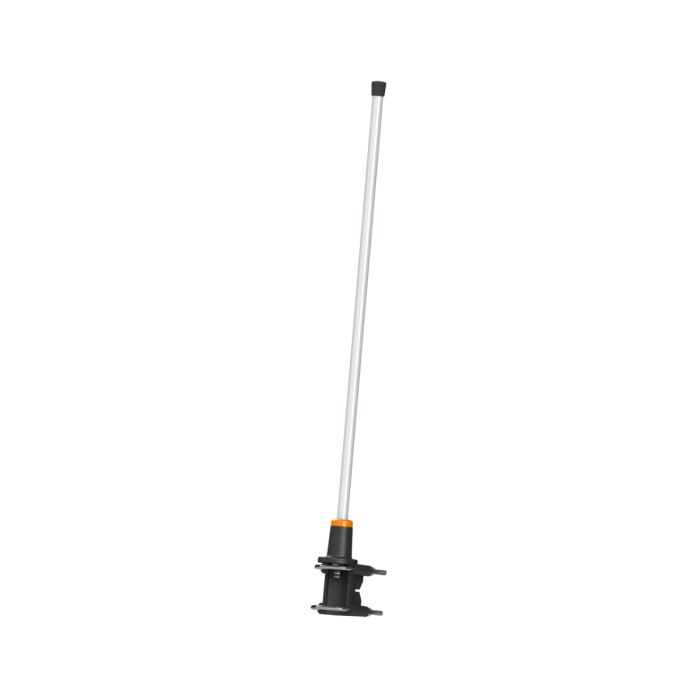

Scan Antenna UHF004

Broadband unity gain omni base station antenna

Light weight wideband UHF 450 MHz Omni-Directional antenna with integrated multipurpose mounting bracket. Comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.

Price Inquiry

FEATURES

The UHF004 is a lightweight broad banded UHF omnidirectional base station antenna with integrated multipurpose mounting bracket.

  • The antenna is sealed in a high-quality glass fibre tube.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Covers the frequency band 330-510 MHz in four models.
  • Large bandwidth with respect to both SWR and Gain.
  • All metal parts in the antenna are DC-grounded.

PRODUCT SPECIFICATION

Model Frequency (MHz) Gain dBd (dBi) Length (mm) Item No.
UHF004-B (in polybag) 380 - 430 0 (2 , 15) 700 23005-001B
UHF004-B (in carton tube) 380 - 430 0 (2 , 15) 700 23005-004B



ELECTRICAL SPECIFICATION

Antenna Type Broadband half wave dipole
Impedance 50 ohm
Max. Input Power 200 W



MECHANICAL SPECIFICATION

Color White, black, orange
Weight 700g
Mount Type Fixed tube mounting bracket
Mounting Place On vertical or horizontal mast tube (Ø 30 – 60 mm)
Operating Temperature -55C to +70C
Survival Wind Speed 55 m/s (200km/h)
Connector N-female
Ingress Protection IP66
UHF004_datasheet (250.11 kB)
