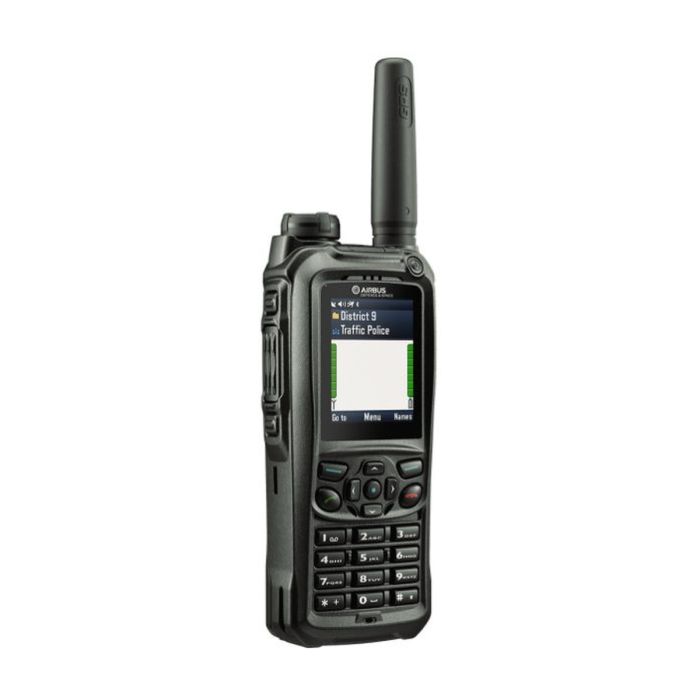

TH9
Tetra hand-portable radio, called TH9, at the 2014 PMRExpo in Cologne. With wider coverage, high output power, Bluetooth connectivity and location-based applications, the robust radio provides professional Tetra users with the best feature set on the market and improves the efficiency of mission-critical voice and data communications. The TH9 is specifically designed for users who require a rugged radio for demanding operations.
FEATURES
The THR9 Ex radio can be programmed and tailored to fit the user’s needs exactly. With a configurable menu and keys, custom Java™ application support and Bluetooth® wireless technology, every worker can build a personalised solution, helping them work safer, faster and smarter.
Focus completely on your mission – the Airbus TH9 TETRA radio works for you. It is a robust radio with:
- IP65 classification
- Large, sharp display
- Clear audio
- Excellent usability
For these and many other reasons, the TH9 is a preferred radio especially for field users, such as police and security. TH9 is easy to use without looking.
It gives you audible indication for many functions that you select. For example,
- Changing the talk group
- Switching to direct mode
- Or changing the profile in use
GENERAL
| Frequency Range | 380-430 MHz |
| Power Class | Compliant EN300392-2 power class 3L (Power class 3L as an option) Receiver class A and B RF power control: 4 steps of 5 dB, and 1 step of 2,5 dB (option) |
| Weight | 284 g |
| Dimensions | 133mm x 58mm x 31mm |
| Display | Transflective full-color QVGA display Up to 262,144 colors, 240 x 320 pixels Display backlight off by single key press Display reverse (180 degrees) Display texts in more than 25 languages Night vision mode |
| Keypad / controls | Alphanumeric keypad 4 navigation keys, 3 selection keys HI/LO key for loudspeaker control Power-on key, volume keys, red function key, duty key, fast menu key, group selector, back key |
| GNSS receiver | Inbuilt GNSS (A-GPS, Glonass, BeiDou/Galileo) receiver with internal memory GPS, Galileo, Glonass/ BeiDou positioning and position information sending to infra-structure and other users 1-3 satellite system simultaneously in use Simultaneous satellites up to 32 72 channels receiver Sensitivity - 167 dBm Accuracy 2,0 meters CEP Cold start TTFF, 26 seconds SBAS augmentation systems (WAAS, EGNOS, MSAS, GAGAN) |
| GNSS features | Automatic position saving Position information sending on request or on triggers (time, distance, status) Support for ETSI location information protocol for TETRA (LIP) Waypoints, waypoint guidance |
| Call types | Phone calls in TETRA & public networks Express and group calls in TETRA network TETRA emergency calls Public emergency calls (e.g. to 112) |
| Network features | Multiple network support ISI support Clock synchronisation with network and/or GNSS time Transmission barring (Tx inhibit) Load Directed Roaming (LDR) Alert for out of network coverage |
| Battery | Three battery options Li-Ion (2000 mAh, 3000 mAh and 5500 mAh) |
| Direct mode features | Up to 1500 DMO groups 500 DMO channels DMO repeater type 1A and 1B communications support, and acting itself as type 1A repeater (optional) TMO-DMO via Gateway communications support, but not as a Gateway itself Scanning DMO individual call Red key call to DMO group Red key call to TMO within TETRA network coverage Public emergency call within TETRA network coverage DMO SCK encryption, encryption classes 2A, 2B and 2C DMO status messages, also during a call and even via Repeater/Gateway DMO SDS messages Network monitoring while in DMO |
