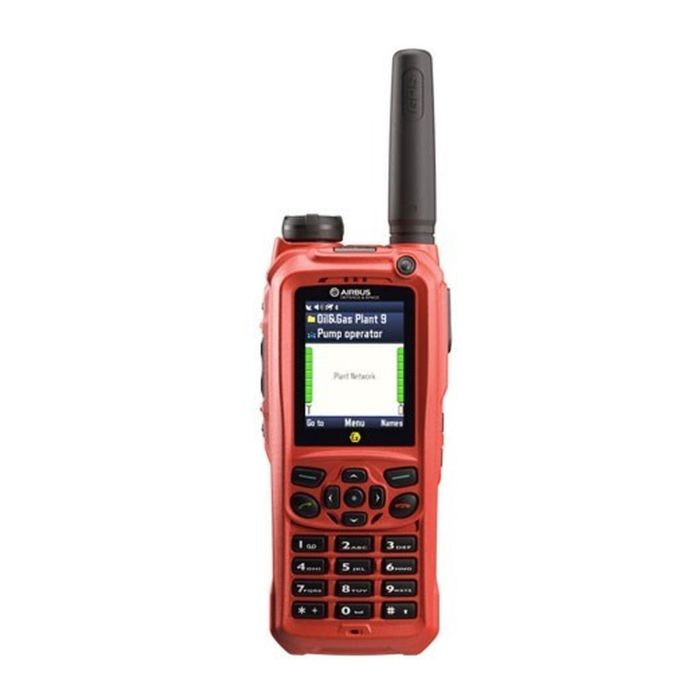

THR-9 EX
The robust, modern THR9 Ex TETRA hand portable radio offers high performance and secure mission critical voice and data communications in situations where intrinsically safe products are needed. Maximum User Safety Clear Audio and Sharp Display With ATEX and IEC-Ex certification for both gas and dust, the THR9 Ex offers the best protection against physical and environmental exposure in explosion-prone areas
Enhance user safety with Emergency Call and Lone Worker functions. Features are programmable per channel.
THR9 Ex is an ex-tremely safe ATEX TETRA radio for explosion-prone areas, such as
- Oil plants
- Airport fuelling
- Gas pipelines
- Refineries
The THR9 Ex is intrinsically safe and can be used in areas where sparks or overheating could endanger the user’s life.
FEATURES
Connected
With rugged design and unique flexible accessory handling in explosion risk areas, the THR9 Ex brings extra safety and efficiency to everyday work. It saves valuable time by allowing users to change a battery or attach Ex certified audio accessories while remaining inside the explosive area.
Maximum User Safety
Comprehensive personal safety features such as the Lifeguard safety solution ‘Man down’, ‘Where are you’ and ‘Work alone’ ensure rapid reaction from the control room when time is of the essence. Complemented with night vision and voice feedback, the THR9Ex is a radio that ATEX users can count on in a wide range of environments and conditions.
Industry Leading Navigation
For demanding industrial applications, the THR9 Ex is equipped with a Global Navigation Satellite System (GNSS) positioning chip. With 72 channel receivers, it allows accurate positioning of staff to within 2m, even in areas with very restricted visibility. It can also send their exact locations instantly in an emergency.
Clear Audio and Sharp Display
The new THR9 Ex audio design with background noise cancellation offers clear sound and excellent audibility, even in an extremely noisy environment. The large and bright colour display of the THR9 Ex ensures all critical information is clearly visible in all light conditions.
Personalised Experience
The THR9 Ex radio can be programmed and tailored to fit the user’s needs exactly. With a configurable menu and keys, custom Java™ application support and Bluetooth® wireless technology, every worker can build a personalised solution, helping them work safer, faster and smarter.
GENERAL
| Frequency Range | 380-430 MHz |
| Power Class | RF power control, 4 steps of 5 dB EN300392-2 compliant, power class 4 Receiver class A |
| Weight | 333 g |
| Dimensions | 133mm x 58mm x 42mm |
| Display | Transflective full-color QVGA display Up to 262,144 colors, 240 x 320 pixels Display backlight off by single key press Display reverse (180 degrees) Display texts in more than 25 languages |
| Keypad / controls | Alphanumeric keypad 4 navigation keys, 3 selection keys HI/LO key for loudspeaker control Power-on key, volume keys, red function key, duty key, fast menu key, group selector, back key |
| GNSS receiver | GPS, Galileo, Glonass/ BeiDou positioning and position information sending to infra-structure and other users 72 channels receiver Sensitivity -167 dBm Accuracy 2,0 m meters CEP Cold start TTFF, 26 seconds A-GPS with internal memory SBAS augmentation systems (WAAS, EGNOS, MSAS, GAGAN) |
| GNSS features | Automatic position saving Position information sending on request or on triggers (time, distance, status) Support for ETSI location information protocol for TETRA (LIP) Waypoints, waypoint guidance |
| Call types | Phone calls in TETRA & public networks Express and group calls in TETRA network TETRA emergency calls Public emergency calls (e.g. to 112) |
| Network features | Multiple network support ISI support Clock synchronisation with network and/or GNSS time Transmission barring (Tx inhibit) Load Directed Roaming (LDR) Alert for out of network coverage |
| Battery | Li-Ion BLN Ex-2U, 1960 mAh Estimated values for BLN Ex-2U battery: Up to 15 h (5/5/90) Up to 14 h (10/30/60) Up to 17,5 h (standby) Alert for out of network coverageNon Display |
| Direct mode features | Up to 1500 DMO groups 500 DMO channels DMO repeater type 1A and 1B communications support, and acting itself as type 1A repeater (option) TMO-DMO via Gateway communications support, but not as a Gateway itself Scanning DMO individual call Red key call to DMO group Red key call to TMO within TETRA network coverage Public emergency call within TETRA network coverage DMO SCK encryption, encryption classes 2A, 2B and 2C DMO status messages DMO SDS messages Network monitoring while in DMO |
ENVIRONMENTAL
| Explosion-proof certification | ATEX and IEC-Ex approval with: II 2G Ex ib IIC T4 Gb for gas II 2D Ex ib IIIC T135°C Db for dust |
| Durability | Water, dust, according to IP65 class Free fall IEC-60068-2-32 (2m) and IEC-60079-0 (1m) Vibration resistant IEC-60068-2-6 Fc, IEC-60068-2-64 Fh broad-band Temperature changes IEC-60068-2-14 Na Solar radiation resistant IEC-60068-2-5 |
